Module M-02 · Explore

The chart you need now, not the one you designed last month.

Explore answers the question you have right now: choose lines, tick metrics, set the time range - the chart updates as you click. Overlay the alarms that fired, compare per line or per customer, copy the link and send it to whoever needs to see it. The screen below is the real one, running on simulated data: go ahead and play with it.

Request a Demo See the dashboards

ExploreLAB-LINE24 hours interactive · demo data

Explore

Metrics
    Alarms
      Scope
        Interactive demo - simulated data A working replica of Explore - try it: tick metrics and alarms, change the range and the aggregation, drag across the chart to zoom into a span, press Go live to watch the values flow. The numbers are simulated, the screen is the real one.

        How it works

        Tick metrics, read the chart

        Every metric the machine reports, in a list you can search - grouped the way a maintenance engineer thinks. Tick two, the chart draws; tick a third, it redraws.

        • Different units, two axes

          Plot power in kW against motor speed in percent and Explore puts each on its own axis, automatically.

        • Any range

          Last hour to last year, this month or last, or a custom range. Zoom in on the ten minutes before a stop, step back, reset.

        • Last, average, min, max

          Choose what each point represents, and how many points you want on screen.

        • Per line, all combined, per customer

          The same metrics, sliced by the level you care about - one line, the whole plant, or one customer against another.

        • Live or historical

          Turn on Live and the chart follows the machine; leave it off and replay a shift that already happened.

        • Share the view

          One click copies a link that reproduces the exact chart - metrics, range, scope - for a colleague or for the customer.

        • Alarms on the chart

          Tick an alarm and its firing windows overlay the chart, every fire and clear in a table below. "Why did it trip at 08:20?" is answered by looking.

        • Every value has a history

          On a machine page every tile carries a sparkline; click it and its last 24 hours open on the spot. Explore combines; the tile checks.

        • Every value has a definition

          Hover a metric: gauge or counter, polling interval, valid range - and the PLC tag name, for the engineer who needs it. The full data model is on the connectivity page.

        Two readers

        The same chart, two jobs

        • Your customer's supervisor

          Opens Explore in the branded portal to answer "what happened on the night shift" - without exporting anything to a spreadsheet.

        • Your service team

          Opens the same chart with the alarm overlaid and answers the support call from the desk. The −58% in on-site visits in the customer story came from exactly that.

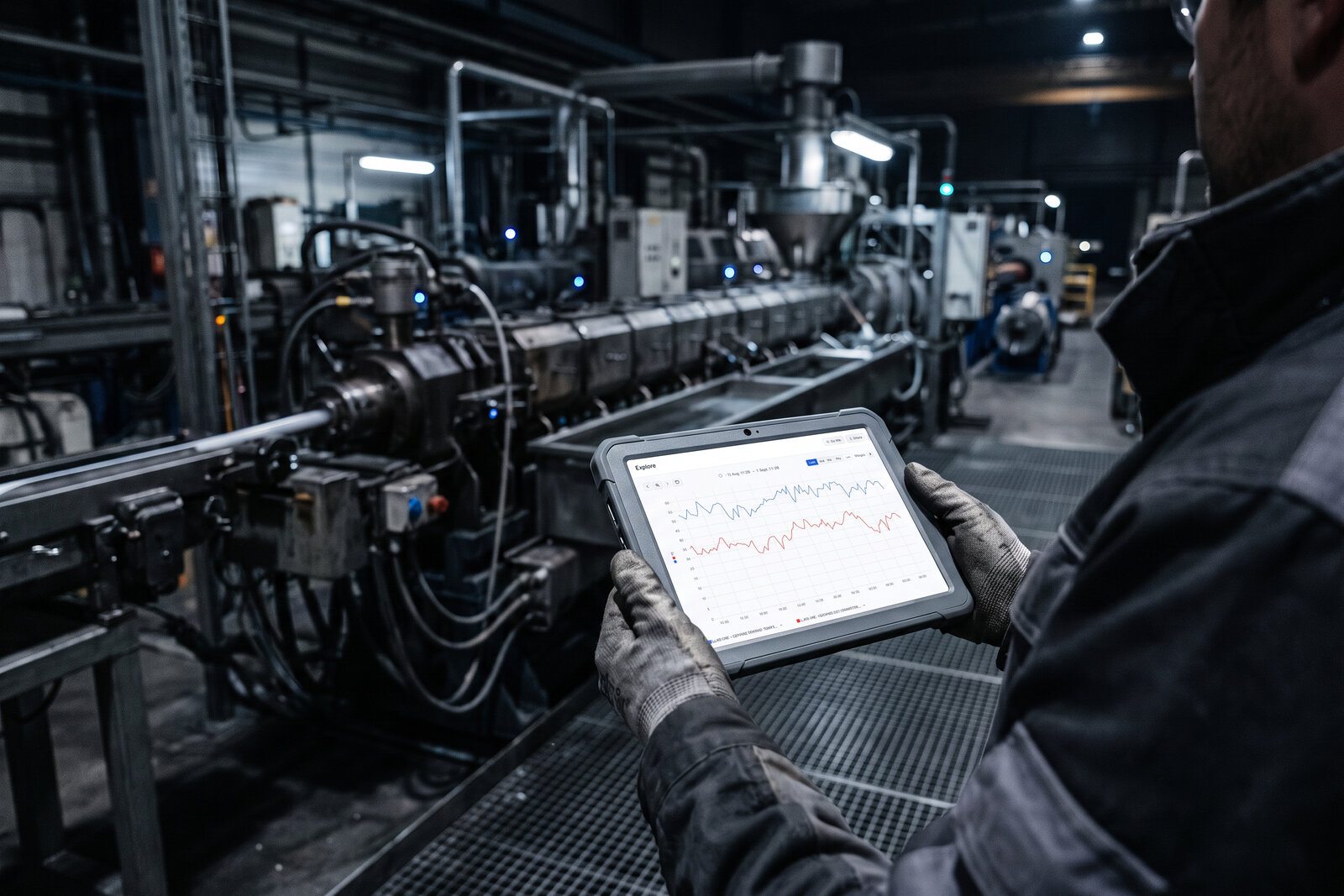

        A supervisor holding a tablet in front of a running extrusion line at night, the tablet showing an Explore chart of two machine signals. Illustrative photo, demo data.
        Illustrative photo - demo data on the screen The night shift, read on the floor: two signals, the range set to the last shift, no export.

        Next - in development

        Ask for the chart in plain words

        Describe the chart - "melt pressure against line speed, last week, Extruder 2" - and Explore builds it. draft In development, not on the platform today: we say so here rather than show it in a demo.

        Measured results

        What reading the data changed in the field

        Outcomes measured across Mavex deployments with a plastic extrusion machine manufacturer.

        • −58% On-site service visits Live machine metrics answered most first-response calls remotely.
        • −40% Unplanned downtime for your customers Delivered via branded portal - predictive alerts gave machine buyers visibility they never had before.
        • +31% OEE improvement for your customers Live and historical data exposed inefficient workflow patterns that were previously hidden to management.

        Results based on early customer deployments. Individual outcomes vary by industry, machine type, and operational context.

        The full customer story and every figure

        Common questions

        Questions we hear about Explore

        Do we have to build charts in advance?
        No. Explore builds them on the fly from the metrics already being collected. The views you want on every machine page are configured once per machine model - see Custom Dashboards.
        Can our customers use Explore?draft
        Explore is available to the manufacturer and admin roles today. Which parts of it a customer-role user sees is being confirmed - ask us and we will answer for your installation.
        Can we export the data?draft
        Every view has a shareable link that reproduces the exact chart. External systems pull data through the REST API on demand or via webhook.
        How far back does the data go?draft
        Explore offers ranges from the last hour up to the last year, plus custom dates. Retention beyond that is set per installation.
